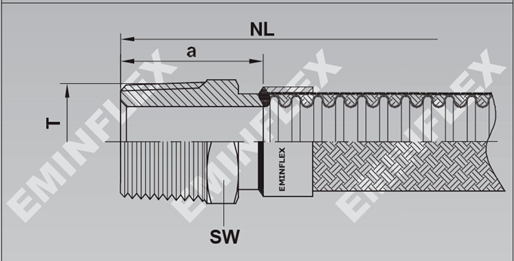

| Product code | Hose Diameter Nominal Diameter (DN) | T | a (mm) | SW (mm) |
|---|---|---|---|---|
| E06 161 506 2NL | DN 06 | 1/4" | 22 | 14 |
| E06 161 508 2NL | DN 08 | 1/4" | 22 | 14 |
| E06 161 510 2NL | DN 10 | 3/8" | 23 | 17 |
| E06 161 512 2NL | DN 12 | 1/2" | 27 | 22 |
| E06 161 516 2NL | DN 16 | 1/2" | 27 | 22 |
| E06 161 520 2NL | DN 20 | 3/4" | 31 | 27 |
| E06 161 525 2NL | DN 25 | 1" | 33 | 36 |
| E06 161 532 2NL | DN 32 | 1-1/4" | 35 | 46 |
| E06 161 540 2NL | DN 40 | 1-1/2" | 39 | 50 |
| E06 161 550 2NL | DN 50 | 2" | 41 | 60 |
